MosMedData: 新冠肺炎胸部 CT扫描数据集上基于3D-CNN实现二分类

作者: WangXi2016

日期: 2022.10.27

摘要: 本示例教程使用3D CNN实现CT数据二分类。

1、介绍

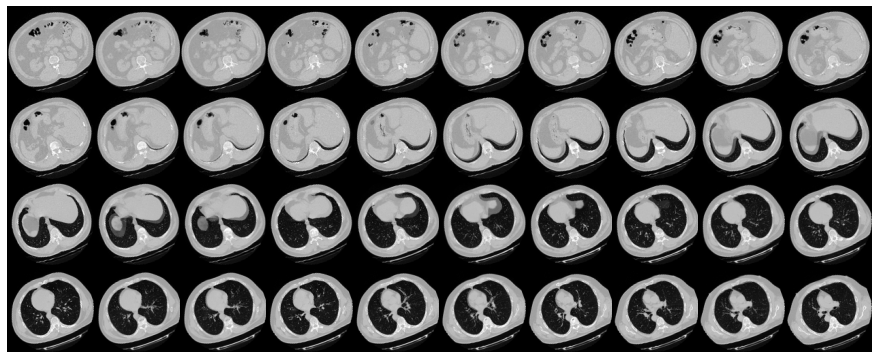

https://ai-studio-static-online.cdn.bcebos.com/925198dd28884de78b0563807b7fed3c92648e052b314f5fa419b495e4c8d5dd

本示例将展示构建3D卷积神经网络(3D CNN),以预测电子计算机断层扫描(CT)是否感染新冠病毒肺炎。

2D CNN通常用于处理RGB图像(3个通道)。

3D CNN:它将3D数据或2D帧序列(例如CT扫描中的切片)作为输入,然后在每一个通道都分离地进行卷积和下采样操作,最后将所有通道的信息组合起来得到最终的特征描述。

2、导入相关库

!pip install nibabel
!pip install scipy

本示例基于Paddle 2.3.2 编写,如果您的环境不是本版本,请先参考官网安装 Paddle 2.3.2 。

import os
import zipfile
import numpy as np
import paddle
import paddle.nn as nn
from paddle.io import Dataset
import random
import matplotlib.pyplot as plt
import sys
from scipy import ndimage
import nibabel as nib

paddle.__version__
'2.3.2'

3、解压数据集

完整数据集链接:https://www.medrxiv.org/content/10.1101/2020.05.20.20100362v1

# 制作一个目录来存储数据。
os.makedirs("MosMedData")

# 在新创建的目录中解压缩数据。
with zipfile.ZipFile("data/data112472/ct-0.zip", "r") as z_fp:
    z_fp.extractall("./MosMedData/")

with zipfile.ZipFile("data/data112472/ct-23.zip", "r") as z_fp:
    z_fp.extractall("./MosMedData/")

4、加载数据和预处理

我们将使用CT扫描的相关放射学发现作为标签来构建分类器,来预测新冠病毒肺炎是否存在。因此,该任务是一个二分类问题。

这些文件以NIFTI格式提供,扩展名为.nii。要阅读扫描,我们使用nibabel包。可以通过pip install nibabel安装包。 CT扫描以Hounsfield单位(HU)存储原始体素强度。在这个数据集中,它们的范围从-1024到2000以上。400以上的骨骼具有不同的放射性强度,因此这被用作更高的界限。通常使用-1000到400之间的阈值来规范CT扫描。

要处理数据,我们执行以下操作:

  • 首先将CT数据在横断面旋转90度,因此方向是固定的。

  • 将HU值缩放为介于0和1之间。

  • 调整宽度,高度和深度的大小。

这里我们定义了几个帮助函数来处理数据,这些功能将用于构建训练和验证数据集。

def read_nifti_file(filepath):
    """读取和加载数据"""
    # 读取文件
    scan = nib.load(filepath)
    # 获取原始数据
    scan = scan.get_fdata()
    return scan


def normalize(volume):
    """数据归一化"""
    min = -1000
    max = 400
    volume[volume < min] = min
    volume[volume > max] = max
    volume = (volume - min) / (max - min)
    volume = volume.astype("float32")
    return volume


def resize_volume(img):
    """跨 z 轴调整大小"""
    # 设置所需的深度
    desired_depth = 64
    desired_width = 128
    desired_height = 128
    # 获取当前深度
    current_depth = img.shape[-1]
    current_width = img.shape[0]
    current_height = img.shape[1]
    # 计算深度因子
    depth = current_depth / desired_depth
    width = current_width / desired_width
    height = current_height / desired_height
    depth_factor = 1 / depth
    width_factor = 1 / width
    height_factor = 1 / height
    # 旋转
    img = ndimage.rotate(img, 90, reshape=False)
    # 跨z轴调整大小
    img = ndimage.zoom(
        img, (width_factor, height_factor, depth_factor), order=1
    )
    return img


def process_scan(path):
    """读取和调整数据大小"""
    # 读取扫描文件
    volume = read_nifti_file(path)
    # 归一化
    volume = normalize(volume)
    # 调整宽度、高度和深度
    volume = resize_volume(volume)
    return volume

从类目录中读取 CT 扫描的路径。

# 文件夹“CT-0”包括具有正常肺组织的CT扫描,
# 没有病毒性肺炎的CT。
normal_scan_paths = [
    os.path.join(os.getcwd(), "MosMedData/CT-0", x)
    for x in os.listdir("MosMedData/CT-0")
]

# 文件夹“CT-23”包括具有感染的CT扫描,

abnormal_scan_paths = [
    os.path.join(os.getcwd(), "MosMedData/CT-23", x)
    for x in os.listdir("MosMedData/CT-23")
]

print("CT scans with normal lung tissue: " + str(len(normal_scan_paths)))
print("CT scans with abnormal lung tissue: " + str(len(abnormal_scan_paths)))
CT scans with normal lung tissue: 100
CT scans with abnormal lung tissue: 100

5、构建训练和验证数据集

从数据集目录中读取扫描并分配标签。

对扫描结果进行缩减采样,使其形状为 128x128x64。

将原始 HU 值重新缩放到 0 到 1 的范围。最后,将数据集拆分为训练子集和验证子集。

abnormal_path = "abnormal_scans.npy"
normal_path = "normal_scans.npy"
# 因此处转换比较耗时,如果关闭此次运行,再次运行又需重新转换,所以我们可以缓存一下转换结果。
if os.path.exists(abnormal_path) and os.path.exists(normal_path):
    abnormal_scans = np.load(abnormal_path)
    normal_scans = np.load(normal_path)
else:
    abnormal_scans = np.array(
        [process_scan(path) for path in abnormal_scan_paths]
    )
    normal_scans = np.array([process_scan(path) for path in normal_scan_paths])
    np.save(abnormal_path, abnormal_scans)
    np.save(normal_path, normal_scans)

CT扫描还通过在训练期间以随机角度旋转来增强。由于数据存储在形状的 rank-3 张量中,我们在轴 4 处添加一个大小为 1 的维度,以便能够对数据执行 3D 卷积。

# 肺部扫描数据集
class dataset(Dataset):
    """
    步骤一:继承paddle.io.Dataset类
    """

    def __init__(self, abnormal_scans, normal_scans, mode="train"):
        """
        步骤二:实现构造函数,
        Args:
            abnormal_scans: 异常CT
            normal_scans: 正常CT
            mode:模式 train、val
        """
        super().__init__()
        self.imgs = []
        self.labels = []
        self.train = False
        abnormal_labels = np.array([1 for _ in range(len(abnormal_scans))])
        normal_labels = np.array([0 for _ in range(len(normal_scans))])
        if mode == "train":
            x_train = np.concatenate(
                (abnormal_scans[:70], normal_scans[:70]), axis=0
            )
            y_train = np.concatenate(
                (abnormal_labels[:70], normal_labels[:70]), axis=0
            )
            self.imgs = x_train
            self.labels = y_train
            self.train = True
        else:
            x_val = np.concatenate(
                (abnormal_scans[70:], normal_scans[70:]), axis=0
            )
            y_val = np.concatenate(
                (abnormal_labels[70:], normal_labels[70:]), axis=0
            )
            self.imgs = x_val
            self.labels = y_val

    def __getitem__(self, index):
        """
        步骤三:实现__getitem__方法,定义指定index时如何获取数据,并返回单条数据(训练数据/测试数据,对应的标签)
        """
        img = self.imgs[index]
        lab = self.labels[index]
        if self.train:
            img = self.rotate(img)
        img = np.array(img).astype("float32")
        lab = np.array([lab], dtype="int64")
        img = np.expand_dims(img, 3)
        return img, lab

    def __len__(self):
        """
        步骤四:实现__len__方法,返回数据集总数目
        """
        return len(self.labels)

    def rotate(self, volume):
        # 定义增强旋转角度
        angles = [-20, -10, -5, 5, 10, 20]
        # 随机选择一个角度
        angle = random.choice(angles)
        # 旋转CT
        volume = ndimage.rotate(volume, angle, reshape=False)
        volume[volume < 0] = 0
        volume[volume > 1] = 1
        return volume
train_dataset = dataset(abnormal_scans, normal_scans)
validation_dataset = dataset(abnormal_scans, normal_scans, mode="val")

train_loader = paddle.io.DataLoader(train_dataset, batch_size=10, shuffle=True)
validation_loader = paddle.io.DataLoader(
    validation_dataset, batch_size=10, shuffle=False
)

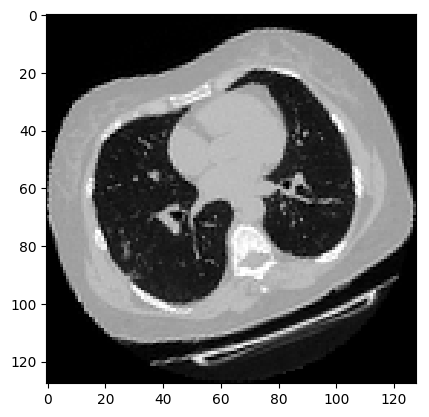

可视化增强型 CT 扫描。

images, labels = train_dataset.__getitem__(0)
print(images.shape)
image = np.squeeze(images, 3)
print("Dimension of the CT scan is:", image.shape)
plt.imshow(np.squeeze(image[:, :, 30]), cmap="gray")
plt.show()
(128, 128, 64, 1)
Dimension of the CT scan is: (128, 128, 64)

png

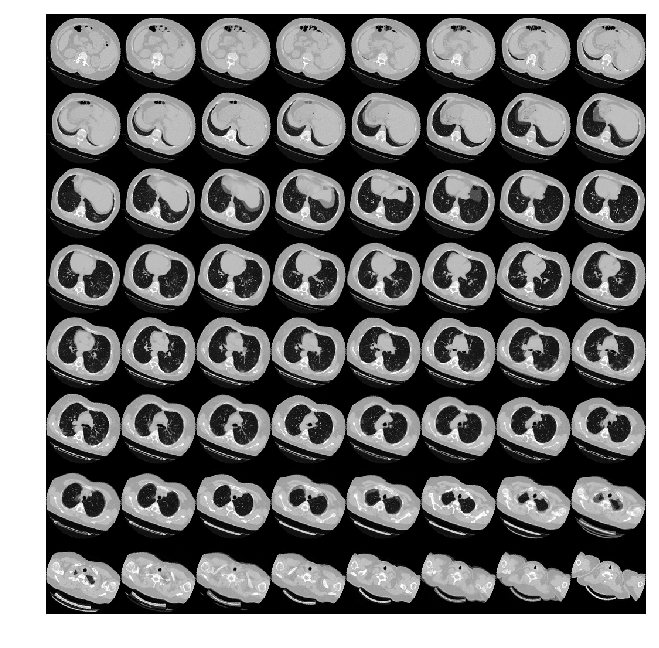

由于CT扫描有许多层切片,可视化多层切片。

def plot_slices(num_rows, num_columns, width, height, data):
    """绘制CT的横断面"""
    data = np.rot90(np.array(data))
    data = np.transpose(data)
    data = np.reshape(data, (num_rows, num_columns, width, height))
    rows_data, columns_data = data.shape[0], data.shape[1]
    heights = [slc[0].shape[0] for slc in data]
    widths = [slc.shape[1] for slc in data[0]]
    fig_width = 6.0
    fig_height = fig_width * sum(heights) / sum(widths)
    f, axarr = plt.subplots(
        rows_data,
        columns_data,
        figsize=(fig_width, fig_height),
        gridspec_kw={"height_ratios": heights},
    )
    for i in range(rows_data):
        for j in range(columns_data):
            axarr[i, j].imshow(data[i][j], cmap="gray")
            axarr[i, j].axis("off")
    plt.subplots_adjust(wspace=0, hspace=0, left=0, right=1, bottom=0, top=1)
    plt.show()


# 绘制CT横断面.
plot_slices(8, 8, 128, 128, image[:, :, :64])

png

6、定义 3D 卷积神经网络

当我们说卷积神经网络(CNN)时,通常是指用于图像分类的二维CNN。但是,现实世界中还使用了其他两种类型的卷积神经网络,即一维CNN和三维CNN。在本指南中,我们将介绍一维CNN和三维CNN及其在现实世界中的应用,我假设您已经大体上熟悉卷积网络的概念。

二维CNN | Conv2D

在Lenet-5架构中首次引入的标准卷积神经网络,其Conv2D通常用于图像数据。之所以称其为二维CNN,是因为内核在数据上沿二维滑动,如下图所示。

内核在图像上滑动

使用CNN的整体优势在于,它可以使用其内核从数据中提取空间特征,而其他网络则无法做到。例如,CNN可以检测图像中的边缘,颜色分布等,这使得这些网络在图像分类和包含空间属性的其他类似数据中非常强大。

一维CNN | Conv1D

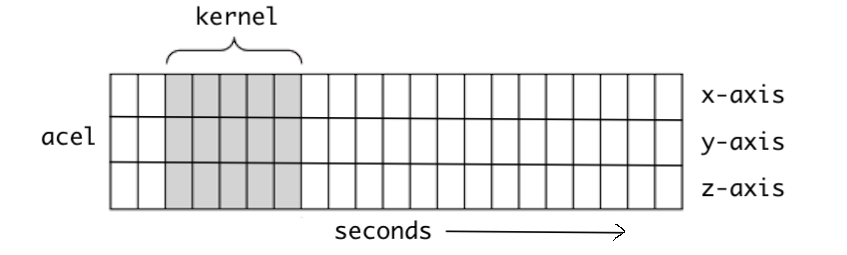

在介绍Conv1D之前,首先给出一个提示。即在Conv1D中,内核沿一维滑动。现在,让我们在此处暂停,考虑哪种类型的数据仅需要内核在一个维度上滑动并具有空间特性? 答案是时间序列数据。让我们看一下以下数据。

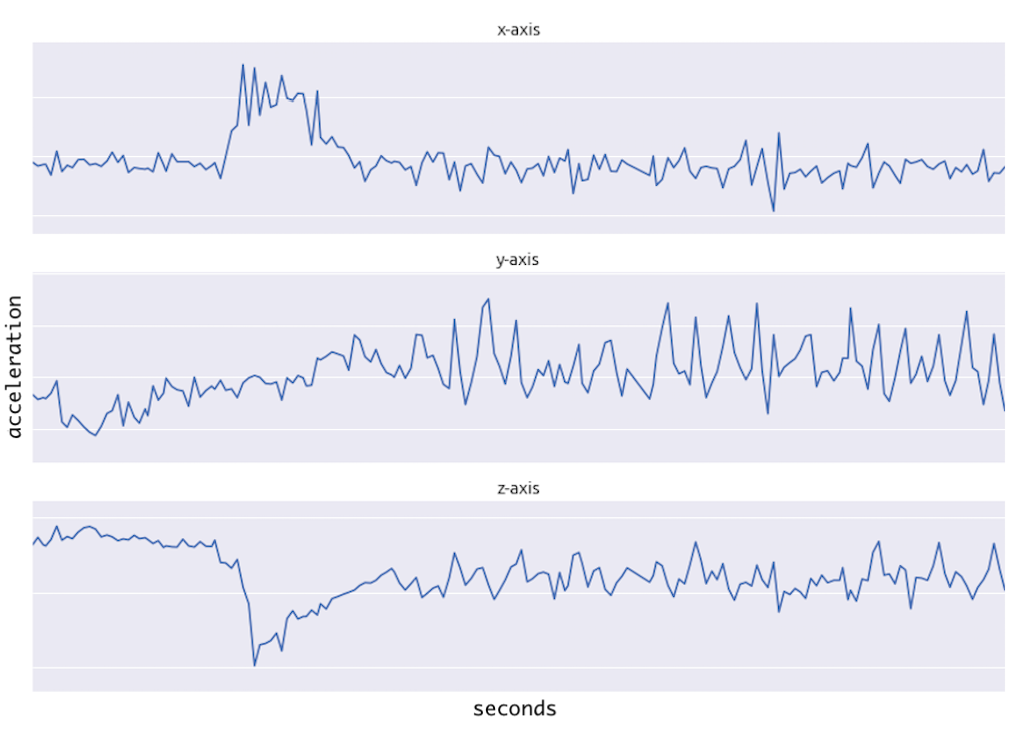

来自加速度计的序列数据

该数据是从人戴在手臂上的加速度计中收集的。数据表示所有三个轴的加速度。一维CNN可以根据加速度计数据执行活动识别任务,例如人的身姿,行走,跳跃等。此数据有二个维度。第一维是时间步长,其他维是3轴上的加速度值。 下图说明了内核如何在加速度计数据上移动,每行代表某个轴的时间序列加速度,内核只能沿时间轴一维移动。

https://ai-studio-static-online.cdn.bcebos.com/abd0bd4caf2f426d8321338470823b81f8561290bc924181b3939bc9abd6b8e4

Conv1D广泛应用于感官数据,加速度计数据就是其中之一。

三维CNN | Conv3D

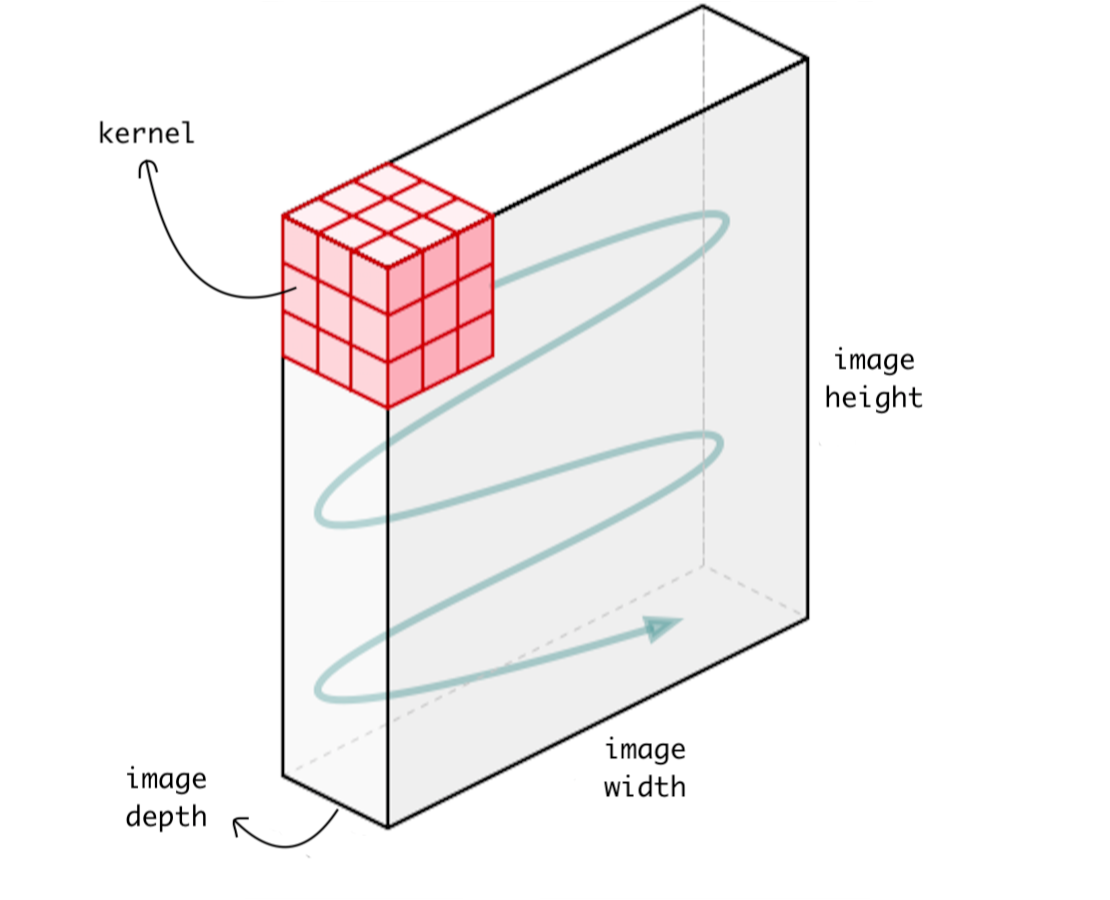

在Conv3D中,内核按三个维度滑动,如下所示。让我们再考虑一下哪种数据类型需要内核在3维上移动?

内核在3D数据上滑动

Conv3D主要用于3D图像数据,例如磁共振成像(MRI)数据,MRI数据被广泛用于检查大脑,脊髓,内部器官等。 还有本案例,电子计算机断层扫描(CT)也是三维数据,这是通过组合从身体周围的不同角度拍摄的一系列X射线图像。 我们可以使用Conv3D对该医学数据进行分类或从中提取特征。

基于Layer定义模型网络结构,模型的可视化展示。

# 3D CNN网络
class CNN3D(nn.Layer):
    def __init__(self):
        super(CNN3D, self).__init__()
        self.layerAll = paddle.nn.Sequential(
            paddle.nn.Conv3D(in_channels=1, out_channels=64, kernel_size=3),
            paddle.nn.ReLU(),
            paddle.nn.MaxPool3D(kernel_size=2),
            paddle.nn.BatchNorm3D(64),
            paddle.nn.Conv3D(in_channels=64, out_channels=64, kernel_size=3),
            paddle.nn.ReLU(),
            paddle.nn.MaxPool3D(kernel_size=2),
            paddle.nn.BatchNorm3D(64),
            paddle.nn.Conv3D(in_channels=64, out_channels=128, kernel_size=3),
            paddle.nn.ReLU(),
            paddle.nn.MaxPool3D(kernel_size=2),
            paddle.nn.BatchNorm3D(128),
            paddle.nn.Conv3D(in_channels=128, out_channels=256, kernel_size=3),
            paddle.nn.ReLU(),
            paddle.nn.MaxPool3D(kernel_size=2),
            paddle.nn.BatchNorm3D(256),
            paddle.nn.AdaptiveAvgPool3D(output_size=1),
            paddle.nn.Flatten(),
            paddle.nn.Linear(256, 512),
            paddle.nn.Dropout(p=0.3),
            paddle.nn.Linear(512, 1),
            paddle.nn.Sigmoid(),
        )

    def forward(self, inputs):
        # 因为数据输入是 【批次、宽度、高度、深度、通道】,调整Paddle默认输入要求,【批次、通道、深度、宽度、高度】
        inputs = inputs.transpose((0, 4, 3, 1, 2))
        x = self.layerAll(inputs)
        return x
cnn = CNN3D()
paddle.summary(cnn, (1, 128, 128, 64, 1))
-----------------------------------------------------------------------------------
   Layer (type)           Input Shape           Output Shape          Param #
===================================================================================
     Conv3D-9       [[1, 1, 64, 128, 128]]  [1, 64, 62, 126, 126]      1,792
      ReLU-9        [[1, 64, 62, 126, 126]] [1, 64, 62, 126, 126]        0
    MaxPool3D-9     [[1, 64, 62, 126, 126]]  [1, 64, 31, 63, 63]         0
   BatchNorm3D-9     [[1, 64, 31, 63, 63]]   [1, 64, 31, 63, 63]        256
     Conv3D-10       [[1, 64, 31, 63, 63]]   [1, 64, 29, 61, 61]      110,656
      ReLU-10        [[1, 64, 29, 61, 61]]   [1, 64, 29, 61, 61]         0
   MaxPool3D-10      [[1, 64, 29, 61, 61]]   [1, 64, 14, 30, 30]         0
  BatchNorm3D-10     [[1, 64, 14, 30, 30]]   [1, 64, 14, 30, 30]        256
     Conv3D-11       [[1, 64, 14, 30, 30]]  [1, 128, 12, 28, 28]      221,312
      ReLU-11       [[1, 128, 12, 28, 28]]  [1, 128, 12, 28, 28]         0
   MaxPool3D-11     [[1, 128, 12, 28, 28]]   [1, 128, 6, 14, 14]         0
  BatchNorm3D-11     [[1, 128, 6, 14, 14]]   [1, 128, 6, 14, 14]        512
     Conv3D-12       [[1, 128, 6, 14, 14]]   [1, 256, 4, 12, 12]      884,992
      ReLU-12        [[1, 256, 4, 12, 12]]   [1, 256, 4, 12, 12]         0
   MaxPool3D-12      [[1, 256, 4, 12, 12]]    [1, 256, 2, 6, 6]          0
  BatchNorm3D-12      [[1, 256, 2, 6, 6]]     [1, 256, 2, 6, 6]        1,024
AdaptiveAvgPool3D-3   [[1, 256, 2, 6, 6]]     [1, 256, 1, 1, 1]          0
     Flatten-3        [[1, 256, 1, 1, 1]]         [1, 256]               0
     Linear-5             [[1, 256]]              [1, 512]            131,584
     Dropout-3            [[1, 512]]              [1, 512]               0
     Linear-6             [[1, 512]]               [1, 1]               513
     Sigmoid-3             [[1, 1]]                [1, 1]                0
===================================================================================
Total params: 1,352,897
Trainable params: 1,350,849
Non-trainable params: 2,048
-----------------------------------------------------------------------------------
Input size (MB): 4.00
Forward/backward pass size (MB): 1222.30
Params size (MB): 5.16
Estimated Total Size (MB): 1231.46
-----------------------------------------------------------------------------------






{'total_params': 1352897, 'trainable_params': 1350849}

7、训练模型

使用前面构建的3D CNN和数据集进行模型训练。

我们这个是二分类任务,网络的最后输出是一个0-1之间的浮点数,所以我们这边使用BCE损失

def Accuracy(pre, label):
    a = np.squeeze(pre.cpu().numpy(), -1)
    a = a < 0.5
    b = np.squeeze(label.cpu().numpy(), -1) == 0
    c = np.sum(a == b)
    return c / len(a)


his_trainloss = []
his_trainacc = []
his_valloss = []
his_valacc = []


def trainer():
    scheduler = paddle.optimizer.lr.ExponentialDecay(
        learning_rate=0.0001, gamma=0.96, verbose=True
    )
    optim = paddle.optimizer.AdamW(
        learning_rate=scheduler, parameters=cnn.parameters()
    )
    criterion = paddle.nn.BCELoss()
    num_epochs = 25
    max_accuracy = 0
    save_path = "best3dcnn"

    for epoch in range(num_epochs):
        traintotal, trainacc, trainloss = 0, 0, 0
        cnn.train()
        for i, (img, labels) in enumerate(train_loader):
            predict = cnn(img)
            loss = criterion(predict, labels.astype(np.float32))
            optim.clear_grad()
            loss.backward()
            optim.minimize(loss)
            acc = Accuracy(predict, labels)
            trainacc += acc
            trainloss += loss.numpy()
            if i % 10 == 0:
                print(
                    f"epoch {epoch} iter {i} loss: {loss.numpy()}, accuracy {acc}"
                )
            traintotal += 1
        valtotal, valacc, valloss = 0, 0, 0
        cnn.eval()
        for i, (img, labels) in enumerate(validation_loader):
            with paddle.no_grad():
                predict = cnn(img)
                loss = criterion(predict, labels.astype(np.float32))
            valacc += Accuracy(predict, labels)
            valloss += loss.numpy()
            valtotal += 1
        print(
            f"epoch {epoch} val Loss {valloss/valtotal} Accuray {valacc/valtotal} "
        )
        # 只保存最优模型
        if valacc / valtotal > max_accuracy:
            max_accuracy = valacc / valtotal
            model_state = cnn.state_dict()
            paddle.save(model_state, save_path)
            print("max accuracy {}".format(max_accuracy))
        scheduler.step()
        his_trainloss.append(trainloss / traintotal)
        his_trainacc.append(trainacc / traintotal)
        his_valloss.append(valloss / valtotal)
        his_valacc.append(valacc / valtotal)


trainer()
Epoch 0: ExponentialDecay set learning rate to 0.0001.
epoch 0 iter 0 loss: [0.6301036], accuracy 0.5
epoch 0 iter 10 loss: [0.7426481], accuracy 0.4
epoch 0 val Loss [1.1324016] Accuray 0.5
max accuracy 0.5
Epoch 1: ExponentialDecay set learning rate to 9.6e-05.
epoch 1 iter 0 loss: [0.7325362], accuracy 0.5
epoch 1 iter 10 loss: [0.5694233], accuracy 0.6
epoch 1 val Loss [1.0659176] Accuray 0.5
Epoch 2: ExponentialDecay set learning rate to 9.216e-05.
epoch 2 iter 0 loss: [0.5374714], accuracy 0.6
epoch 2 iter 10 loss: [0.40864113], accuracy 0.8
epoch 2 val Loss [0.7484214] Accuray 0.5166666666666667
max accuracy 0.5166666666666667
Epoch 3: ExponentialDecay set learning rate to 8.847359999999999e-05.
epoch 3 iter 0 loss: [0.4230544], accuracy 0.8
epoch 3 iter 10 loss: [0.4823562], accuracy 0.9
epoch 3 val Loss [0.6880954] Accuray 0.6166666666666667
max accuracy 0.6166666666666667
Epoch 4: ExponentialDecay set learning rate to 8.493465599999999e-05.
epoch 4 iter 0 loss: [0.6360772], accuracy 0.6
epoch 4 iter 10 loss: [0.6532255], accuracy 0.6
epoch 4 val Loss [0.5975937] Accuray 0.7000000000000001
max accuracy 0.7000000000000001
Epoch 5: ExponentialDecay set learning rate to 8.153726975999998e-05.
epoch 5 iter 0 loss: [0.676396], accuracy 0.6
epoch 5 iter 10 loss: [0.5197036], accuracy 0.7
epoch 5 val Loss [0.5965887] Accuray 0.7000000000000001
Epoch 6: ExponentialDecay set learning rate to 7.827577896959998e-05.
epoch 6 iter 0 loss: [0.5222303], accuracy 0.7
epoch 6 iter 10 loss: [0.28494963], accuracy 0.9
epoch 6 val Loss [0.62934595] Accuray 0.6833333333333332
Epoch 7: ExponentialDecay set learning rate to 7.514474781081598e-05.
epoch 7 iter 0 loss: [0.5931848], accuracy 0.7
epoch 7 iter 10 loss: [0.34113288], accuracy 0.9
epoch 7 val Loss [0.5483835] Accuray 0.7000000000000001
Epoch 8: ExponentialDecay set learning rate to 7.213895789838334e-05.
epoch 8 iter 0 loss: [0.4956868], accuracy 0.8
epoch 8 iter 10 loss: [0.8255708], accuracy 0.5
epoch 8 val Loss [0.67082316] Accuray 0.5833333333333334
Epoch 9: ExponentialDecay set learning rate to 6.9253399582448e-05.
epoch 9 iter 0 loss: [0.5112359], accuracy 0.8
epoch 9 iter 10 loss: [0.5681261], accuracy 0.6
epoch 9 val Loss [0.6324358] Accuray 0.65
Epoch 10: ExponentialDecay set learning rate to 6.648326359915008e-05.
epoch 10 iter 0 loss: [0.4329744], accuracy 0.9
epoch 10 iter 10 loss: [0.7594853], accuracy 0.5
epoch 10 val Loss [0.5622995] Accuray 0.7000000000000001
Epoch 11: ExponentialDecay set learning rate to 6.382393305518408e-05.
epoch 11 iter 0 loss: [0.3882313], accuracy 0.8
epoch 11 iter 10 loss: [0.48908353], accuracy 0.8
epoch 11 val Loss [0.54760677] Accuray 0.7666666666666666
max accuracy 0.7666666666666666
Epoch 12: ExponentialDecay set learning rate to 6.12709757329767e-05.
epoch 12 iter 0 loss: [0.348113], accuracy 0.8
epoch 12 iter 10 loss: [0.41176265], accuracy 0.9
epoch 12 val Loss [0.5595346] Accuray 0.7833333333333332
max accuracy 0.7833333333333332
Epoch 13: ExponentialDecay set learning rate to 5.882013670365765e-05.
epoch 13 iter 0 loss: [0.3314957], accuracy 1.0
epoch 13 iter 10 loss: [0.32749084], accuracy 1.0
epoch 13 val Loss [0.5549964] Accuray 0.7333333333333334
Epoch 14: ExponentialDecay set learning rate to 5.6467331235511337e-05.
epoch 14 iter 0 loss: [0.36251408], accuracy 0.9
epoch 14 iter 10 loss: [0.23271704], accuracy 1.0
epoch 14 val Loss [0.5716041] Accuray 0.7333333333333334
Epoch 15: ExponentialDecay set learning rate to 5.4208637986090884e-05.
epoch 15 iter 0 loss: [0.35667133], accuracy 0.9
epoch 15 iter 10 loss: [0.38534072], accuracy 0.9
epoch 15 val Loss [0.55513054] Accuray 0.7333333333333334
Epoch 16: ExponentialDecay set learning rate to 5.2040292466647244e-05.
epoch 16 iter 0 loss: [0.37971848], accuracy 0.9
epoch 16 iter 10 loss: [0.37076467], accuracy 0.8
epoch 16 val Loss [0.546179] Accuray 0.6833333333333332
Epoch 17: ExponentialDecay set learning rate to 4.9958680767981346e-05.
epoch 17 iter 0 loss: [0.4073751], accuracy 0.8
epoch 17 iter 10 loss: [0.35747206], accuracy 0.8
epoch 17 val Loss [0.50928646] Accuray 0.7666666666666667
Epoch 18: ExponentialDecay set learning rate to 4.7960333537262095e-05.
epoch 18 iter 0 loss: [0.26402354], accuracy 1.0
epoch 18 iter 10 loss: [0.3062905], accuracy 0.9
epoch 18 val Loss [0.57567877] Accuray 0.7166666666666667
Epoch 19: ExponentialDecay set learning rate to 4.6041920195771606e-05.
epoch 19 iter 0 loss: [0.19812493], accuracy 1.0
epoch 19 iter 10 loss: [0.37852132], accuracy 0.9
epoch 19 val Loss [0.55201167] Accuray 0.6666666666666666
Epoch 20: ExponentialDecay set learning rate to 4.4200243387940746e-05.
epoch 20 iter 0 loss: [0.2532389], accuracy 1.0
epoch 20 iter 10 loss: [0.19800806], accuracy 1.0
epoch 20 val Loss [0.6551569] Accuray 0.7000000000000001
Epoch 21: ExponentialDecay set learning rate to 4.243223365242311e-05.
epoch 21 iter 0 loss: [0.26303864], accuracy 1.0
epoch 21 iter 10 loss: [0.36150858], accuracy 0.8
epoch 21 val Loss [0.5345089] Accuray 0.6833333333333332
Epoch 22: ExponentialDecay set learning rate to 4.073494430632618e-05.
epoch 22 iter 0 loss: [0.18942678], accuracy 1.0
epoch 22 iter 10 loss: [0.51950914], accuracy 0.7
epoch 22 val Loss [0.56237996] Accuray 0.6333333333333333
Epoch 23: ExponentialDecay set learning rate to 3.910554653407313e-05.
epoch 23 iter 0 loss: [0.19643877], accuracy 0.9
epoch 23 iter 10 loss: [0.2246792], accuracy 1.0
epoch 23 val Loss [0.61442226] Accuray 0.7000000000000001
Epoch 24: ExponentialDecay set learning rate to 3.754132467271021e-05.
epoch 24 iter 0 loss: [0.30469954], accuracy 1.0
epoch 24 iter 10 loss: [0.08427861], accuracy 1.0
epoch 24 val Loss [0.51900846] Accuray 0.7333333333333333
Epoch 25: ExponentialDecay set learning rate to 3.60396716858018e-05.

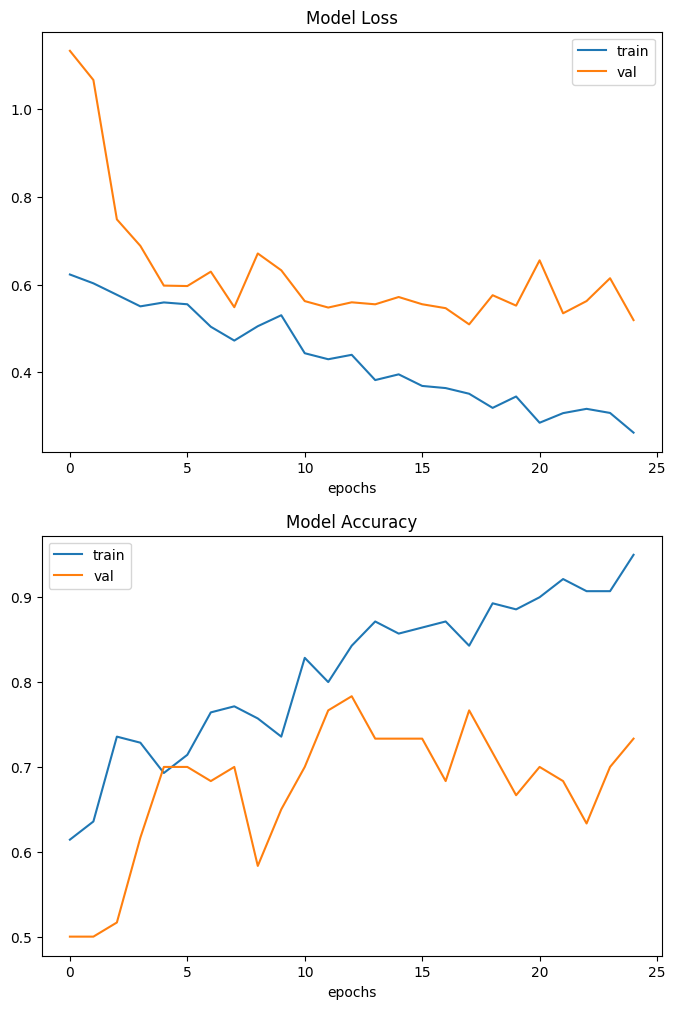

8、可视化模型性能

这里绘制了训练和验证集的模型精度和损失。

由于验证集是类平衡的,准确率可以无偏见表示模型性能。

fig, ax = plt.subplots(2, 1, figsize=(8, 12))
ax = ax.ravel()


ax[0].plot(his_trainloss)
ax[0].plot(his_valloss)
ax[0].set_title("Model {}".format("Loss"))
ax[0].set_xlabel("epochs")
ax[0].legend(["train", "val"])

ax[1].plot(his_trainacc)
ax[1].plot(his_valacc)
ax[1].set_title("Model {}".format("Accuracy"))
ax[1].set_xlabel("epochs")
# ax[1].set_ylabel(metric)
ax[1].legend(["train", "val"])
<matplotlib.legend.Legend at 0x7efe65dae250>

png

需要注意的是,样本的数量非常少只有200个。

因此,验证集与训练集中预测结果有显著差异,这里可以找到由1000多个CT扫描组成的完整数据集。

使用完整的数据集,准确率达到83%。

9、模型预测

对模型进行预测,展示效果。

param_state_dict = paddle.load("best3dcnn")
cnn.set_dict(param_state_dict)
cnn.eval()  # 预测模式


def predictor(index):
    imagen, label = validation_dataset.__getitem__(index)
    image = paddle.to_tensor(
        np.expand_dims(imagen, axis=0), dtype=paddle.float32
    )
    prediction = cnn(image)
    scores = [1 - prediction[0][0], prediction[0][0]]
    class_names = ["normal", "abnormal"]
    for score, name in zip(scores, class_names):
        print("模型预测: %.2f 概率,这张CT %s" % ((100 * score), name))
    print("真实标签为:", class_names[int(label[0])])
    data = np.rot90(imagen)
    data = np.transpose(data)
    data = np.reshape(data, (8, 8, 128, 128))
    rows_data, columns_data = data.shape[0], data.shape[1]
    heights = [slc[0].shape[0] for slc in data]
    widths = [slc.shape[1] for slc in data[0]]
    fig_width = 6.0
    fig_height = fig_width * sum(heights) / sum(widths)

    f, axarr = plt.subplots(
        rows_data,
        columns_data,
        figsize=(fig_width, fig_height),
        gridspec_kw={"height_ratios": heights},
    )

    for i in range(rows_data):
        for j in range(columns_data):
            axarr[i, j].imshow(data[i][j], cmap="gray")
            axarr[i, j].axis("off")
    plt.subplots_adjust(wspace=0, hspace=0, left=0, right=1, bottom=0, top=1)

    plt.text(
        -930,
        -850,
        "The true label is:" + class_names[int(label[0])],
        size=15,
        color="yellow",
        style="italic",
        weight="light",
        bbox=dict(facecolor="black", alpha=0.3),
    )
    plt.text(
        -930,
        -790,
        "This model is %.2f percent confident that CT scan is %s"
        % ((100 * scores[0]), class_names[0]),
        size=15,
        color="w",
        style="italic",
        weight="light",
        bbox=dict(facecolor="black", alpha=0.3),
    )
    plt.text(
        -930,
        -730,
        "This model is %.2f percent confident that CT scan is %s"
        % ((100 * scores[1]), class_names[1]),
        size=15,
        color="r",
        style="italic",
        weight="light",
        bbox=dict(facecolor="black", alpha=0.3),
    )
    plt.show()

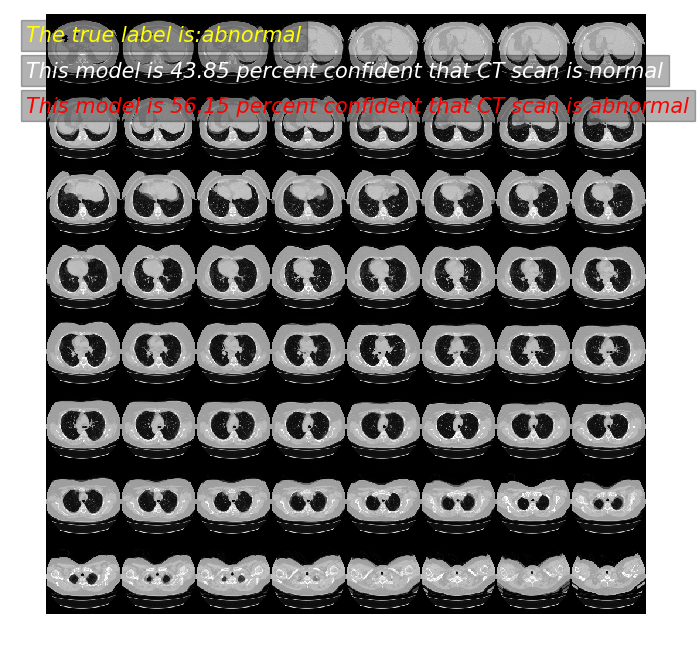

predictor(2)
模型预测: 43.85 概率,这张CT normal
模型预测: 56.15 概率,这张CT abnormal
真实标签为: abnormal

png

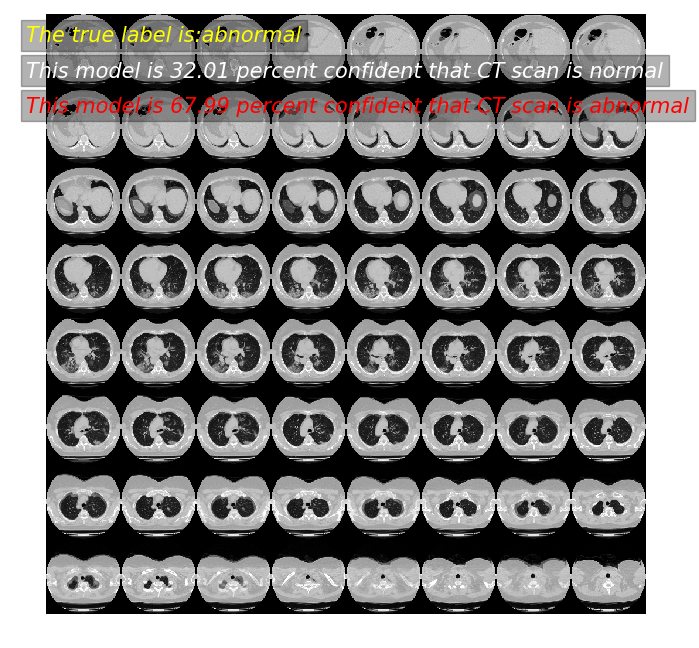

predictor(11)
模型预测: 32.01 概率,这张CT normal
模型预测: 67.99 概率,这张CT abnormal
真实标签为: abnormal

png

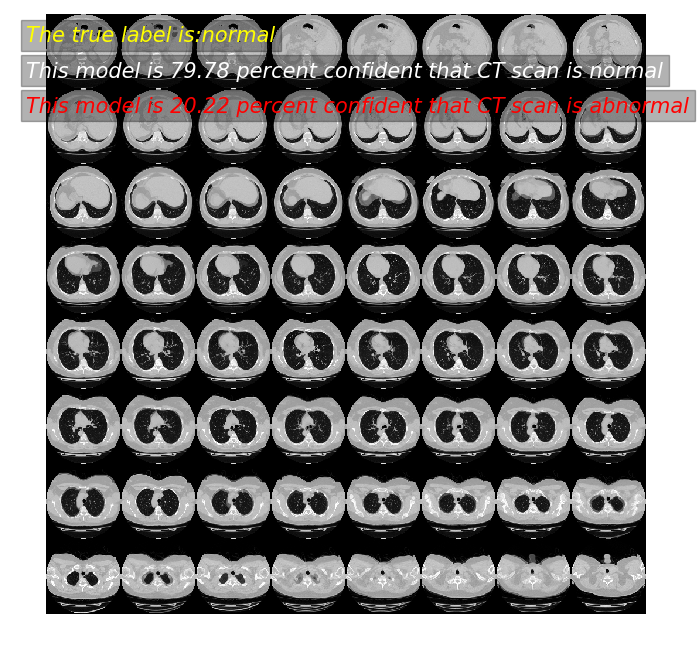

predictor(55)
模型预测: 79.78 概率,这张CT normal
模型预测: 20.22 概率,这张CT abnormal
真实标签为: normal

png
