# 使用线性回归预测波士顿房价¶

## 二、环境配置¶

```import paddle
import numpy as np
import os
import matplotlib
import matplotlib.pyplot as plt
import pandas as pd
import seaborn as sns
import warnings

warnings.filterwarnings("ignore")

```
```2.3.0
```

## 三、数据集介绍¶

### 3.1 数据处理¶

```# 下载数据
!wget https://archive.ics.uci.edu/ml/machine-learning-databases/housing/housing.data -O housing.data
```
```# 从文件导入数据
datafile = "./housing.data"
housing_data = np.fromfile(datafile, sep=" ")
feature_names = [
"CRIM",
"ZN",
"INDUS",
"CHAS",
"NOX",
"RM",
"AGE",
"DIS",
"TAX",
"PTRATIO",
"B",
"LSTAT",
"MEDV",
]
feature_num = len(feature_names)
# 将原始数据进行Reshape，变成[N, 14]这样的形状
housing_data = housing_data.reshape(
[housing_data.shape[0] // feature_num, feature_num]
)
```

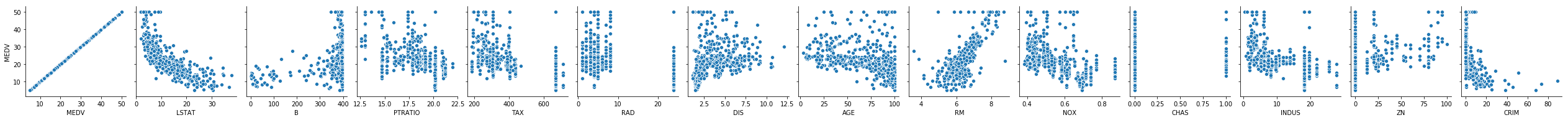

```# 画图看特征间的关系,主要是变量两两之间的关系（线性或非线性，有无明显较为相关关系）
features_np = np.array([x[:13] for x in housing_data], np.float32)
labels_np = np.array([x[-1] for x in housing_data], np.float32)
# data_np = np.c_[features_np, labels_np]
df = pd.DataFrame(housing_data, columns=feature_names)
matplotlib.use("TkAgg")
%matplotlib inline
sns.pairplot(
df.dropna(),
y_vars=feature_names[-1],
x_vars=feature_names[::-1],
diag_kind="kde",
)
plt.show()
```

```# 相关性分析
fig, ax = plt.subplots(figsize=(15, 1))
corr_data = df.corr().iloc[-1]
corr_data = np.asarray(corr_data).reshape(1, 14)
ax = sns.heatmap(corr_data, cbar=True, annot=True)
plt.show()
```

### 3.2 数据归一化处理¶

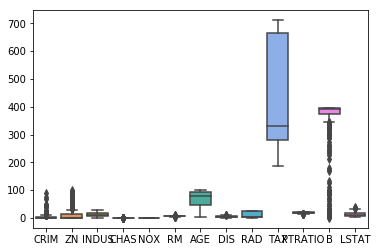

```sns.boxplot(data=df.iloc[:, 0:13])
```
```<matplotlib.axes._subplots.AxesSubplot at 0x7fc3bcbc5310>
```

• 过大或过小的数值范围会导致计算时的浮点上溢或下溢。

• 不同的数值范围会导致不同属性对模型的重要性不同（至少在训练的初始阶段如此），而这个隐含的假设常常是不合理的。这会对优化的过程造成困难，使训练时间大大的加长.

```features_max = housing_data.max(axis=0)
features_min = housing_data.min(axis=0)
features_avg = housing_data.sum(axis=0) / housing_data.shape[0]
```
```BATCH_SIZE = 20

def feature_norm(input):
f_size = input.shape
output_features = np.zeros(f_size, np.float32)
for batch_id in range(f_size[0]):
for index in range(13):
output_features[batch_id][index] = (
input[batch_id][index] - features_avg[index]
) / (features_max[index] - features_min[index])
return output_features
```
```# 只对属性进行归一化
housing_features = feature_norm(housing_data[:, :13])
# print(feature_trian.shape)
housing_data = np.c_[housing_features, housing_data[:, -1]].astype(np.float32)
# print(training_data[0])
```

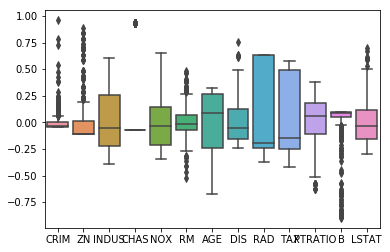

```# 归一化后的train_data, 看下各属性的情况
features_np = np.array([x[:13] for x in housing_data], np.float32)
labels_np = np.array([x[-1] for x in housing_data], np.float32)
data_np = np.c_[features_np, labels_np]
df = pd.DataFrame(data_np, columns=feature_names)
sns.boxplot(data=df.iloc[:, 0:13])
```
```<matplotlib.axes._subplots.AxesSubplot at 0x7fc3bca4cc10>
```

```# 将训练数据集和测试数据集按照8:2的比例分开
ratio = 0.8
offset = int(housing_data.shape[0] * ratio)
train_data = housing_data[:offset]
test_data = housing_data[offset:]
```

## 四、模型组网¶

```class Regressor(paddle.nn.Layer):
def __init__(self):
super().__init__()
13,
1,
)

def forward(self, inputs):
pred = self.fc(inputs)
return pred
```

```train_nums = []
train_costs = []

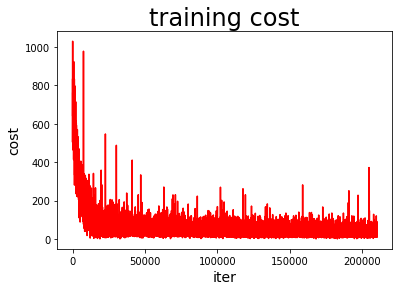

def draw_train_process(iters, train_costs):
plt.title("training cost", fontsize=24)
plt.xlabel("iter", fontsize=14)
plt.ylabel("cost", fontsize=14)
plt.plot(iters, train_costs, color="red", label="training cost")
plt.show()
```

## 五、方式1：使用基础API完成模型训练&预测¶

### 5.1 模型训练¶

```import paddle.nn.functional as F

y_preds = []
labels_list = []

def train(model):
print("start training ... ")
# 开启模型训练模式
model.train()
EPOCH_NUM = 500
train_num = 0
learning_rate=0.001, parameters=model.parameters()
)
for epoch_id in range(EPOCH_NUM):
# 在每轮迭代开始之前，将训练数据的顺序随机的打乱
np.random.shuffle(train_data)
# 将训练数据进行拆分，每个batch包含20条数据
mini_batches = [
train_data[k : k + BATCH_SIZE]
for k in range(0, len(train_data), BATCH_SIZE)
]
for batch_id, data in enumerate(mini_batches):
features_np = np.array(data[:, :13], np.float32)
labels_np = np.array(data[:, -1:], np.float32)
# 前向计算
y_pred = model(features)
cost = F.mse_loss(y_pred, label=labels)
train_cost = cost.numpy()[0]
# 反向传播
cost.backward()
# 最小化loss，更新参数
optimizer.step()
# 清除梯度

if batch_id % 30 == 0 and epoch_id % 50 == 0:
print("Pass:%d,Cost:%0.5f" % (epoch_id, train_cost))

train_num = train_num + BATCH_SIZE
train_nums.append(train_num)
train_costs.append(train_cost)

model = Regressor()
train(model)
```
```W0509 14:51:50.219018  1188 gpu_context.cc:278] Please NOTE: device: 0, GPU Compute Capability: 7.0, Driver API Version: 11.2, Runtime API Version: 10.1
W0509 14:51:50.223405  1188 gpu_context.cc:306] device: 0, cuDNN Version: 7.6.

start training ...
Pass:0,Cost:829.83044
Pass:50,Cost:61.24179
Pass:100,Cost:39.79546
Pass:150,Cost:30.91046
Pass:200,Cost:72.18225
Pass:250,Cost:15.98895
Pass:300,Cost:24.57131
Pass:350,Cost:11.01749
Pass:400,Cost:12.64952
Pass:450,Cost:38.58059
```
```matplotlib.use("TkAgg")
%matplotlib inline
draw_train_process(train_nums, train_costs)
```

### 5.2 模型预测¶

```# 获取预测数据
INFER_BATCH_SIZE = 100

infer_features_np = np.array([data[:13] for data in test_data]).astype(
"float32"
)
infer_labels_np = np.array([data[-1] for data in test_data]).astype("float32")

fetch_list = model(infer_features)

sum_cost = 0
for i in range(INFER_BATCH_SIZE):
infer_result = fetch_list[i][0]
ground_truth = infer_labels[i]
if i % 10 == 0:
print(
"No.%d: infer result is %.2f,ground truth is %.2f"
% (i, infer_result, ground_truth)
)
cost = paddle.pow(infer_result - ground_truth, 2)
sum_cost += cost
mean_loss = sum_cost / INFER_BATCH_SIZE
print("Mean loss is:", mean_loss.numpy())
```
```No.0: infer result is 11.82,ground truth is 8.50
No.10: infer result is 5.35,ground truth is 7.00
No.20: infer result is 14.91,ground truth is 11.70
No.30: infer result is 16.59,ground truth is 11.70
No.40: infer result is 13.60,ground truth is 10.80
No.50: infer result is 16.11,ground truth is 14.90
No.60: infer result is 18.67,ground truth is 21.40
No.70: infer result is 15.46,ground truth is 13.80
No.80: infer result is 18.04,ground truth is 20.60
No.90: infer result is 21.31,ground truth is 24.50
Mean loss is: [12.7556715]
```

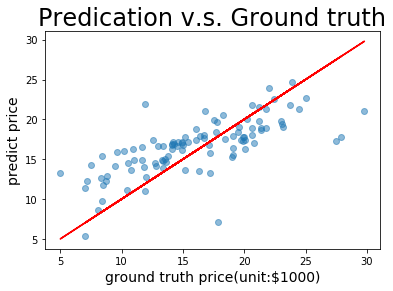

```def plot_pred_ground(pred, ground):
plt.figure()
plt.title("Predication v.s. Ground truth", fontsize=24)
plt.xlabel("ground truth price(unit:\$1000)", fontsize=14)
plt.ylabel("predict price", fontsize=14)
plt.scatter(ground, pred, alpha=0.5)  #  scatter:散点图,alpha:"透明度"
plt.plot(ground, ground, c="red")
plt.show()
```
```plot_pred_ground(fetch_list, infer_labels_np)
```

## 六、方式2：使用高层API完成模型训练&预测¶

```import paddle

# step1:用高层API定义数据集，无需进行数据处理等，高层API为你一条龙搞定

# step2:定义模型
def __init__(self):
super().__init__()

def forward(self, input):
pred = self.fc(input)
return pred

# step3:训练模型
model.prepare(
